Lightweight Magnetic Small Folding Electric Bike with EN15194

Magnetic folding frame/light weight, easy carriable; Newest design in market; with CE certification
Battery:
Frame:
Tire:
Brake:
Speed:
Quantity:
  • SD-006
  • STEED
SD-006 (NEW)
NET WEIGHT 13KGS
Configurations*Standard
* Recommended                   With                  -Without                  option                     Under developing
Basic specification
FrameMagnesium alloy
Tyre size16*1.75 Chaoyang
1:1 intelligent pedal assistant 12magnets
Charging time3-4H
Speed0-25km/h
Range with 1:1 PAS mode30-40 km
Bike weight13KGS
Loading capacity100kgs
Unfolding size125*52*100CM
Folding size74*27*55CM
Packing78.5*64*29CM, 191PCS/20Ft, 411PCS/40HQ
Electric configuration
Brushless hub motor 250W
Lithium battery 36V5.2AH
Max 36V7AH lithium battery
Intelligent brushless controller
AC 100-240V,2A smart charger
EN06 LCD display
Spanninga headlight with horn
Mechanical configuration
Mag-alloy front fork without suspension
Disc brake
Wuxing brake lever
TEKTRO brake lever
Single gear
Magnesium rim with motor
PROMAX seat post/ handle bar
Wellgo Pedal
Patent seat

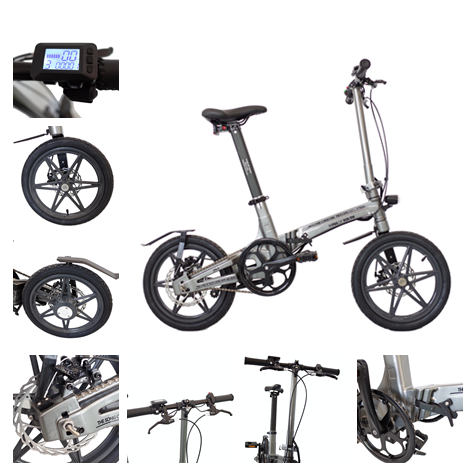

006����ƴͼ �����۵�����������13KGS-1
